IPTraf User's Manual

Written by Gerard Paul Java
Copyright © Gerard Paul Java 1997-2000

Version 2.2.1

Permission is granted to reproduce and distribute this document with the included software under the terms of the GNU General Public License. This manual and the software that accompanies it come with absolutely no warranty, not even the implied warranties of merchantability or fitness for any particular purpose. See the included COPYING file for details.

Table of Contents

About This Document

This document is the User's Manual for IPTraf 2.1. Documented here are the features of the program and instructions on its use.

This manual is the HTML version and can be viewed with any Web browser supporting HTML 3.2.

Viewable with Any Browser

For Additional Information

See the included README file for summarized and late-breaking information. The CHANGES file contains a record of the changes made to the software since 1.0.0. README.rvnamed contains information on the rvnamed reverse resolution program. See the other README files for support and development information.

Document Conventions

[ ]
items in brackets are optional
{ }
curly braces enclose items you choose from
|
the vertical bar separates choices in curly braces
normal monospace
normal monospace text in syntax specifications should be typed in exactly as presented. Because UNIX and variants are case-sensitive, case must be preserved. Monospace is also used in presenting items that appear on the screen.
monospace italics
italics in syntax specifications indicate items that are to be replaced with an actual item (e.g. interface should be replaced with an actual interface name, like eth0.

Introduction

IPTraf is a network monitoring utility for IP networks. It intercepts packets on the network and gives out various pieces of information about the current IP traffic over it. Information returned by IPTraf include:

IPTraf can be used to monitor the load on an IP network, the most used types of network services, the proceedings of TCP connections, and others.

IPTraf is software-only, and utilizes the built-in raw packet capture interface of the Linux kernel, allowing it to be used with a wide range of Ethernet cards, supported FDDI adapters, supported ISDN adapters, and any asynchronous SLIP/PPP interface. No special hardware is required.

Basic knowledge of the important TCP/IP protocols (IP, TCP, UDP, ICMP, etc.) is necessary for you to best understand the information generated by the program.

Installation

IPTraf is most readily available on the Internet, but some may receive it on a diskette. Here are the instructions for both types of distributions.

System Requirements

The supplied IPTraf precompiled program requires the following to run:

The X Window system is not required. Here are the installation instructions.

Installing the Downloaded Package

IPTraf can be downloaded from the Internet. The downloadable package is in a compressed (gzip) tar archive. To extract the files from the archive, you need these utilities:

If you downloaded IPTraf from the Internet, follow these steps to install the software:

  1. Decompress the .tar.gz file by entering

      tar zxvf iptraf-x.y.z.tar.gz

    If your tar doesn't support the z option, you can separately decompress the tar.gz then extract the resulting .tar archive.

      gunzip iptraf-x.y.z.tar.gz
      tar xvf iptraf-x.y.z.tar

    This will decompress the sources into a directory called iptraf-x.y.z.

    x.y.z here should be the IPTraf version number you're installing, like 2.2.0.

  2. Change to the src directory. It already contains ready-to-run distribution binaries for IPTraf and the accompanying rvnamed daemon.

  3. To install the software, enter

        make install

    while you are logged in as "root". This will install the distribution binary in the /usr/local/bin directory. The necessary working directory /var/local/iptraf will also be created.

Installing the Floppy Distribution

If you received IPTraf on a diskette, the sources are already decompressed. The diskette is in Second Extended filesystem format. Perform the following steps to install the software.

  1. Insert the floppy in the drive.
  2. Mount the floppy on an empty directory. For example, to mount the floppy in the first floppy drive under a directory called /mnt, enter

            mount -t ext2 /dev/fd0 /mnt

    This assumes your floppy is in /dev/fd0. You can use any empty directory in place of /mnt. With most Linux distributions, this will work.
  3. After mounting, change to the /mnt (or whatever) directory.
  4. Enter

            make install

    while logged in as root.
  5. This will copy the binaries to /usr/local/bin, and create the /var/local/iptraf working directory and the /var/log/iptraf log directory.

  6. Unmount the diskette by typing

            umount /mnt

        (That's umount, not unmount.)

    You can then eject the diskette. Store it in a safe place.

In both cases (downloaded and floppy), the installation will store the program in /usr/local/bin with the binaries owned by user root, readable, writable, and executable by the owner, no permissions for the group, no permissions for all others. (700 octal, or -rwx------).

In either case, perform the "make install" step. This not only transfers the executable programs, but creates the necessary directories if they do not yet exist. IPTraf will not function properly without them.


Note You must be logged in as root to perform the "make install" step to allow the proper directories to be written to or created.

Be sure /usr/local/bin is included in your environment's PATH variable. You can edit the appropriate command in your login customization file (.profile for the Bourne-type shells, .cshrc for the C shells and its relatives).

Upgrading from Earlier Versions

If you're running IPTraf 2.0.x or earlier, and you're using TCP/UDP filters, do a "make upgrade" procedure. Versions 1.4.x and 2.0.x erroneously placed the filter data files in a wrong directory due to a filename parsing bug.

There have been no file format changes since version 1.4. If you're upgrading from a version prior to 1.4, do the "make upgrade" procedures from each semi-major version in sequence (e.g. 1.2 -> 1.3 -> 1.4).

Starting IPTraf

After installation, you can start the program by simply entering at the shell prompt. You will see a copyright notice, with an instruction to press any key to get started. Just press any character key, and you will be immediately taken to the main menu. All major functions of the program are found here.

Entering the IPTraf command without any command-line parameters brings up the program's main menu. From there, you can select the facilities you want.

IPTraf determines and makes use of the maximum number of lines and columns on the terminal.


Note IPTraf does not yet have a SIGWINCH handler, and does not adjust itself when an xterm other X terminal is resized.


Technical note IPTraf needs to refer to the terminfo database in /usr/share/terminfo. If the supplied executable program fails with "Error opening terminal", your terminfo database may be located somewhere else. You can control the terminfo search path by using the TERMINFO environment variable. For example, if you're using the sh or bash shell, and your terminfo database is in /usr/lib/terminfo (typical for Slackware distributions), you can use the commands: You can place these commands in your ~/.profile or the systemwide /etc/profile startup files.

You can also create a symbolic link named /usr/share/terminfo to let it point to your existing terminfo (assuming again your terminfo is in /usr/lib/terminfo):

Or you can recompile your program to use your existing ncurses library installation. If you do this, make sure you have ncurses 1.9.9e or later.

Command-line Options

The following command-line parameters can also be passed to the IPTraf command:

-i iface
causes the IP traffic monitor to start immediately on the specified interface. If -i all is specified, all interfaces are monitored.
-g

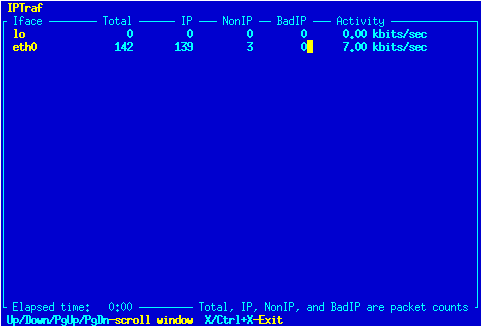

starts the general interface statistics
-d iface

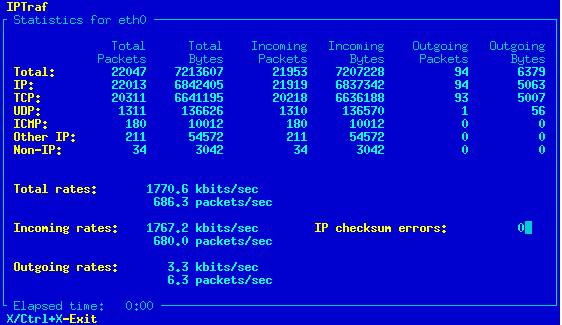

shows detailed statistics for the specified interface
-s iface

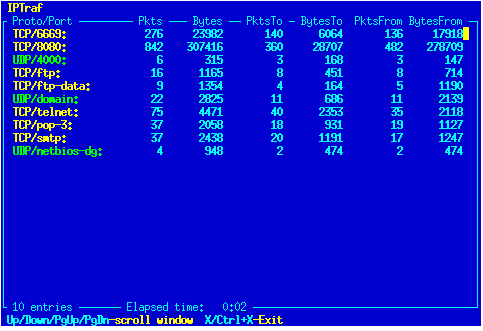

starts the TCP/UDP traffic monitor for the specified interface
-z iface

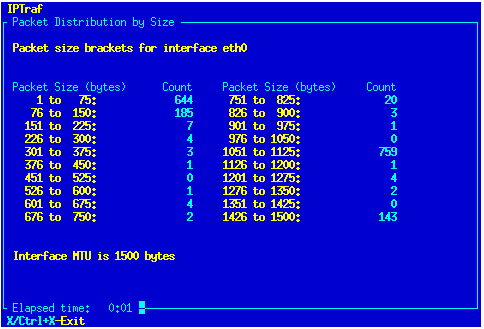

starts the packet size breakdown for the specified interface
-l iface

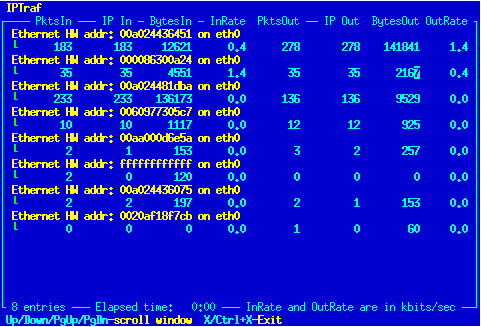

starts the LAN station monitor on the specified interface. If -l all is specified, all LAN interfaces are monitored.
-t timeout
The -t parameter, when used with one of the other parameters that specify a facility to start, tells IPTraf to run the indicated facility for only timeout minutes, after which the facility exits. The -t parameter is ignored in menu mode.

If this parameter is not specified, the facility runs until the exit keystroke is pressed.

-B
Redirects all terminal output to the "bit bucket" /dev/null, closes standard input, and places the program in the background. This parameter can be used only with one of the -i, -g, -d, -s, -z, or -l parameters. See the section on Background Operation below. -B is ignored in menu mode.
-q
Previously used to suppress the warning screen when IPTraf is run on kernels with IP Masquerading. Since the masquerading code now processes packets in a way better suited to raw capture, this parameter is no longer needed and is retained only for compatibility.
-f
IPTraf's internal behavior does not allow its facilities to work well with other instances of themselves. To prevent conflicts involving internal resources (sockets) or files (logs), IPTraf will not allow more than one instance of a facility (traffic monitor, interface statistics, etc) to run at the same time. However, multiple copies of IPTraf can be started, each running a different facility. Configuration is only allowed for the first instance of IPTraf, subsequent instances cannot modify the configuration.

The -f parameter overrides the existing locks imposed by the IPTraf process and by the various facilities, causing this instance to think it is the first and that there are no other facilities running. Use this parameter with great caution. A common use for this parameter is to recover from abrupt or abnormal terminations which may leave stale locks still lying around.

The -f parameter may be used together with the others.

iptraf -h
displays a short help screen

While interactive commands in the IPTraf interface are not case-sensitive, command-line options are.

Using the Menus

Use the Up and Down arrow keys on your keyboard to move the selection bar. Press Enter to execute the selected item. Alternatively, you can also directly press the highlighted letter of the item you want. This will immediately execute the option.

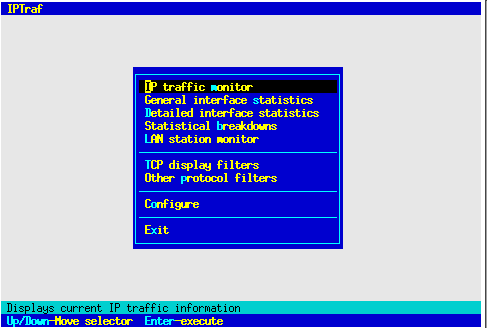

Main Menu

Using IPTraf

General Information

The following sections document the various statistics facilities. The default behavior is to return counts in as close to real time as possible, although this may be adjusted at the Configuration menu.

Number Display Notations

Initially IPTraf returns counts in bytes and packets. However, as they grow larger, IPTraf begins displaying them in higher denominations.

A number standing alone with no suffix represents an exact count. A number with a K following is a kilo (thousand) figure. An M, G, and T suffix represents mega (million), giga (billion), and tera (trillion) respectively. For example

1024067		- exactly 1024067
1024K		- approximately 1024000
1024M		- approximately 1024000000
1024G		- approximately 1024000000000
1024T		- approximately 1024000000000000

These notations apply to both packet and byte counts.

Logging

The statistical facilities can log their counts and information to log files. As of version 1.3, log files are by default stored in the directory /var/log/iptraf. Each facility logs its information to its own log file. See the Logging option under Configuration below.

See the descriptions of the individual facilities below for the names of the log files. The logs are in plain text format and can be viewed with any text pager or editor.

Screen Update Delays

Older versions of IPTraf updated the screen as soon as a packet was received. However, screen updates are one of the slowest operations the program performs. Since version 1.3, a configuration option has been available to control screen update speed.

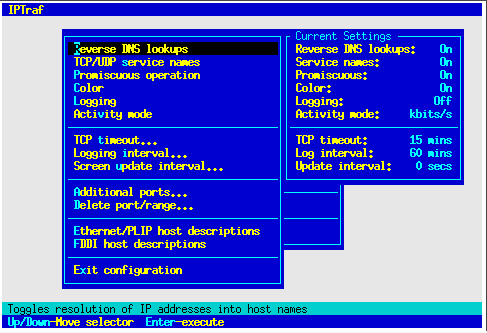

See the Screen update interval... configuration option under the Configuration section of this manual.

Supported Network Interfaces

IPTraf currently supports the following network interface types and names.
lo
The loopback interface. Every machine has one, and has an IP address of 127.0.0.1. lo is also indicated if data is detected on the dummyn interface(s).
ethn
An Ethernet interface. n starts from 0. Therefore, eth0 refers to the first Ethernet interface, eth1 to the second, and so on. Most machines only have one.
fddin
An FDDI interface. n starts from 0.
pppn
A PPP interface. n starts from 0. Therefore, ppp0 is the first PPP interface, ppp1 is the second, and so on.
slin
A SLIP interface. n starts from 0. Same sequence as above
ipppn
A synchronous PPP interface using ISDN. n starts from 0.
isdnn
ISDN interfaces can be given arbitrary names, but for them to work with IPTraf, they must be named isdnn. IPTraf supports synchronous PPP (the ipppn interfaces above), raw IP, and Cisco-HDLC encapsulation.
plipn
PLIP interfaces. These are point-to-point IP connections using the PC parallel port.

Your system's network interfaces must be named according to the schemes specified above.

IP Traffic Monitor

Executing the first menu item or specifying -i to the iptraf command takes you to the IP Traffic Monitor. The Traffic Monitor is a real-time monitoring system that intercepts all packets on all detected network interfaces. The monitor decodes the IP information on all IP packets and displays the appropriate information about it, most notably the source and destination addresses. In addition to that, it also determines the encapsulated protocol within the IP packet, and displays some important information about that as well.

There are two windows in the Traffic Monitor. Both of them can be scrolled with the Up and Down cursor keys. Just press W to move the Active indicator to the window you want to control.

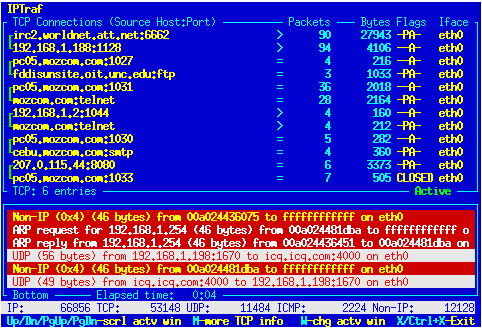

IP Traffic Monitor

Upper Window

The upper window of the Traffic Monitor displays the currently detected TCP connections. Information about TCP packets are displayed here. The window contains these pieces of information:


Note Previous versions of IPTraf showed both the source and destination addresses on each line. IPTraf 2 shows only the source host:port combination to save on screen real estate. TCP connection endpoints are still indicated with the green brackets along the left edge of the screen.

The TCP window is scrollable, and you can use the Up and Down arrow keys on your keyboard to view more connections when the TCP window is marked Active.

Because this monitoring system relies solely on packet information, it does not determine which endpoint initiated the connection. In other words, it does not determine which endpoint is the client, and which is the server. This is necessary because it can operate in promiscuous mode, and as such cannot determine the socket statuses for other machines on the LAN.

That being the case, the system displays two entries for each connection, one for each direction of the TCP connection. To make it easier to determine the direction pairs of each connection, a bracket is used to "join" both together. This bracket appears at the leftmost part of each entry.

Just because a host entry appears at the upper end of a connection bracket doesn't mean it was the initiator of the connection.

Each entry in the window contains these fields:

Source address and port
The source address and port indicator is in address:port format. This indicates the source machine and TCP port on that machine from which this data is coming.

The destination is the host:port at the other end of the bracket.

Packet count
The number of packets received for this direction of the TCP connection

Byte count
The number of bytes received for this direction of the TCP connection. These bytes include total IP and TCP header information, in addition to the actual data. Data link header (e.g. Ethernet and FDDI) data are not included.

Packet Size
The size of the most recently received packet. This item is visible if you press M for more TCP information. This is the size of the IP datagram only, not including the data link header.

Window Size
The advertised window size of the most recently received packet. This item is visible if you press M for more TCP information.

Flag statuses
The flags of the most recently received packet.

S
SYN. A synchronization is taking place in preparation for connection establishment. If only an S is present (S---) the source is trying to initiate a connection. If an A is also present (S-A-), this is an acknowledgment of a previous connection request, and is responding.
A
ACK. This is an acknowledgment of a previously received packet
P
PSH. A request to push all data to the top of the receiving queue
U
URG. This packet contains urgent data
RESET
RST. The source machine indicated in this direction reset the entire connection. The direction entries for reset connections become available for new connections.
DONE
The connection is done sending data in this direction, and has sent a FIN (finished) packet, but has not yet been acknowledged by the other host.
CLOSED
The FIN has been acknowledged by the other host. When both directions of a connection are marked CLOSED, the entries they occupy become available for new connection entries.
-
The flag is not set

Two more data items can also be viewed, the packet size and the advertised window size. When the TCP window is marked Active, pressing M will replace the packet and byte counts with the packet size and window size. Press M again to view the packet counts and byte counts.

By default, only IP addresses are displayed, but if you have access to a name server or host table, you may enable reverse lookup for the IP addresses. Just enable reverse lookup in the Configure menu.


The rvnamed Process

The IP Traffic Monitor starts a daemon called rvnamed to help speed up reverse lookups without sacrificing too much keyboard control and accuracy of the counts. While reverse lookup is being conducted in the background, IP addresses will be used until the resolution is complete.

If for some reason rvnamed cannot start (probably due to improper installation or lack of memory), and you are on the Internet, and you enable reverse lookup, your keyboard control can become very slow. This is because the standard lookup functions do not return until they have completed their tasks, and it can take several seconds for a name resolution in the foreground to complete.



Tip If you notice unusual SYN activity (too many initial (S---) but frozen SYN entries, or rapidly increasing initial SYN packets for a single connection), you may be under a SYN flooding attack. Apply appropriate measures, or the targeted machine may begin denying network services.

Entries not updated within a user-configurable amount of time may get replaced with new connections. The default time is 15 minutes. This is regardless of whether the connection is closed or not. (Some unclosed connections may be due to extremely slow links or crashes at either end of the connection.) This figure can be changed at the Configure menu.

Some early entries may have a > symbol in front of its packet count. This means the connection was already established when the monitor started. In other words, the figures indicated do not reflect the counts since the start of the TCP connection, but rather, since the start of the traffic monitor. Eventually, these > entries will close (or time out) and disappear. TCP entries without the > were initiated after the traffic monitor started, and the counts indicate the totals of the connection itself. Just consider entries with > partial.

Some > entries may go idle if the traffic monitor was started when these connections were already half-closed (FIN sent by one host, but data still being sent by the other). This is because the traffic monitor cannot determine if a connection was already half-closed when it started. These entries will eventually time out. (To minimize these entries, an entry is not added by the monitor until a packet with data or a SYN packet is received.)

Direction entries also become available for reuse if an ICMP Destination Unreachable message is received for the connection.

The lower part of the screen contains a summary line showing the IP, TCP, UDP, ICMP, and non-IP byte counts since the start of the monitor. The IP, TCP, UDP, and ICMP counts include only the IP datagram header and data, not the data-link headers. The non-IP count includes the data-link headers.


Technical note: IP Forwarding and Masquerading

Previous versions of IPTraf issued a warning if the kernel had IP Masquerading enabled due to the way the kernel masqueraded and translated the IP addresses. The new kernels no longer do it as before and IPTraf now gives output properly on masquerading machines. The -q parameter is no longer required to suppress the warning screen.

On forwarding (non-masquerading) machines packets and TCP connections simply appear twice, one each for the incoming and outgoing interfaces.

On masquerading machines, packets and connections from the internal network to the external network also appear twice, one for the internal and external interface. Packets coming from the internal network will be indicated as coming from the internal IP address that sourced them, and also as coming from the IP address of the external interface on your masquerading machine. In much the same way, packets coming in from the external network will look like they're destined for the external network's IP address, and again as destined for the final destination on the internal network.


Closed/Idle/Timed Out Connections

A TCP connection entry that closes, gets reset, or stays idle too long normally get replaced with new connections. However, if these get too many, active connections may become interspersed among closed, reset, or idle entries.

IPTraf can be set to automatically remove all closed, reset, and idle entries with the TCP closed/idle persistence... configuration option. You can also press the F key to arbitrarily clear it at any time.


Note The TCP timeout... option only tells IPTraf how long it should take before a connection should be considered idle and open to replacement by new connections. This does not determine how long it remains onscreen. The TCP closed/idle persistence... parameter flushes entries that have been idle for the number of minutes defined by the TCP timeout... option.

Lower Window

The lower window displays information about the other types of traffic on your network. The following protocols are detected:

Non-IP packets are simply indicated as Non-IP in the lower window.


Note The source and destination addresses for ARP and RARP entries are MAC addresses.

Well, strictly speaking, ARP and RARP packets aren't IP packets, since they are not encapsulated in an IP datagram. They're just indicated because they are integral to proper IP operation on LANs.


For all packets in the lower window, only the first IP fragment is indicated (since that contains the header of the IP-encapsulated protocol) but with no further information from the encapsulated protocol.

UDP packets are also displayed in address:port format. ICMP entries also contain the ICMP message type. For easier location, each type of protocol is color-coded (text console only).

UDP             Red on White
ICMP		Yellow on Blue
OSPF		Black on Cyan
IGRP		Bright white on Cyan
IGP		Red on Cyan
IGMP		Bright green on Blue
ARP		Bright white on Red
RARP		Bright white on Red
Other IP        Yellow on Red
Non-IP		Yellow on Red
The lower window can hold up to 512 entries. You can scroll the lower window by using the W key to move the Active indicator to it, and by using the Up and Down cursor keys. The lower window automatically scrolls every time a new entry is added, and either the first entry or last entry is visible. Upon reaching 512 entries, old entries are thrown out as new entries are added.

Some entries may be too long to completely fit in a screen line. You can use the Left and Right cursor keys to vertically scroll the lower window when it is marked Active.

Entry Details
In general, the entries in the lower window indicate the protocol, the IP datagram size (full frame size for non-IP, including ARP and RARP), the source address, the destination address, and the network interface the packet was detected on. However, some protocols have a little more information.

ICMP: ICMP entries are displayed in this format:

ICMP type (subtype) (size bytes) from source to destination on interface

where type could be any of the following:

echo request, echo reply
ICMP echo request and reply. Usually used by the ping program and other network monitoring and diagnostic program.
dest unreach
ICMP destination unreachable. Something failed to reach its target. The dest unreach type is supplemented with a further indicator of the problem. Destination unreachable messages for TCP traffic causes the corresponsing TCP entry in the upper window to be made available for reuse by new connections.
redirect
ICMP redirect. Usually generated by a router to tell a host that a better gateway is available.
source quench
The ICMP source quench is used to stop a host from transmitting. It's some kind of flow control mechanism.
time exceeded
Indicates a packet's time-to-live value expired before it got to its destination. Mostly happens if a destination is too far away. Also used by the traceroute program.
router adv
ICMP router advertisement
router sol
ICMP router solicitation
timestamp req
ICMP timestamp request
timestamp rep
ICMP timestamp reply
info req
ICMP information request
info rep
ICMP infromation reply
addr mask req
ICMP address mask request
addr mask rep
ICMP address mask reply
parameter problem
ICMP parameter problem
bad/unknown
An unrecognized ICMP packet was received, or the packet is corrupted.

The destination unreachable message also includes information on the type of error encountered. Here are the destination unreachable codes:

network
network unreachable
host
host unreachable
protocol
protocol unreachable
port
port unreachable
DF set
the packet has to be fragmented somewhere, but its don't fragment (DF) bit is set.
src route failed
source route failed
src isoltd
source isolated (obsolete)
net comm denied
network communication denied
host comm denied
host communication denied
net unreach for TOS
network unreachable for specified IP type-of-service
host unreach for TOS
host unreachable for specified IP type-of-service
prec violtn
precedence violation
prev cutoff
precedence cutoff
dest net unkn
destination network unknown
dest host unkn
destination network unknown

For more information on ICMP, see RFC 792.

OSPF: OSPF messages also include a little more information. The format of an OSPF message in the window is:

OSPF type (a=area r=router) (size bytes) from source to destination on interface

The type can be one of the following:

hlo
OSPF hello. Hello messages establish OSPF communications and keep routers informed of each other's presence.
DB desc
OSPF Database Description
LSR
OSPF Link State Request
LSU
OSPF Link State Update. Messages indicating the states of the OSPF network links
LSA
OSPF Link State Acknowledgment

The entries in parentheses:

a=area
The area number of the OSPF message
r=router
The IP address of the router that generated the message. It is not necessarily the same as the source address of the encapsulating IP packet.

Many times, the destination addresses for OSPF packets are class D multicast addresses in standard dotted decimal notation or (if reverse lookup is enabled), hosts under the MCAST.NET domain. Such multicast addresses are defined as follows:

224.0.0.5 (OSPF-ALL.MCAST.NET)
OSPF all routers
224.0.0.6 (OSPF-DSIG.MCAST.NET)
OSPF all designated routers

See RFC 1247 for details on the OSPF protocol.

With logging enabled, IP traffic monitor information is written to the file ip_traffic.log.

At any time, you can press X or Q to return to the main menu (or back to the shell if the monitor was started with iptraf -i).

General Interface Statistics

The second menu option displays a list of attached network interfaces, and some general packet counts. Specifically, it displays counts of IP, non-IP, and bad IP packets (packets with IP checksum errors). It also includes an activity indicator, which shows the number of kilobits and packets the interface sees per second. All figures are for incoming and outgoing packets. (Again, considering promiscuous mode for LAN interfaces, which simply causes the machine to intercept all packets). This is useful for general monitoring of all attached interfaces. If byte counts and additional information are needed for a specific interface, the Detailed interface statistics option is also available.

The activity indicators can be toggled between kbits/s and kbytes/s with the Activity mode configuration option.

The general statistics window will dynamically add new entries as packets from newly-created interfaces (e.g. new PPP interfaces) are intercepted. Long lists can be scrolled with the Up, Down, PgUp, and PgDn keys.

Copies of the statistics are written to the log file iface_stats_general.log at regular intervals if logging is enabled. See the Logging option below.

This facility can be started directly from the command line with the -g option to the iptraf command.

General Interface Statistics

You can press X or Q to return to the main menu.

Detailed Interface Statistics

The third menu option displays packet statistics for any selected interface. It provides basically the same information as the General interface statistics option, with additional information. This option provides the following information:

All IP byte counts (IP, TCP, UDP, ICMP, other IP) include IP header data and payload. The data link header is not included. The full frame length (including data-link header) is included in the non-IP and Total byte count.

Detailed Interface Statistics

The upper portion of the screen contains the packet and byte counts for all IP and non-IP packets intercepted on the interface. The lower portion contains the total, incoming, and outgoing interface data rates.

This facility also displays incoming and outgoing counts and data rates. The packet size breakdown in versions prior to 2.0.0 has been moved to its own facility under Statistical breakdowns/By packet size.

An outgoing packet is one that exits your interface, regardless of whether it originated from your machine or came from another machine and was routed through yours. An incoming packet is one that enters your interface, either addressed to you directly, broadcast, multicast, or captured promiscuously.

The rate indicators can be set to display kbits/s or kbytes/s with the Activity mode configuration option.


Note Buffering and some other factors may affect the data rates, notably the outgoing rate, causing it to reflect a higher figure than the actual rate at which the interface is sending.

If you wish to start this facility directly from the command line, you can specify the -d parameter and an interface to monitor. For example,

        iptraf -d eth0
starts the statistics for eth0. The interface must be specified, or IPTraf will not start the facility.


Note In both the general and detailed statistics screens, as well as in the IP Traffic Monitor, the packet counts are for actual network packets (layer 2), not the logical IP packets (layer 3) that may be reconstructed after fragmentation. That means, if a packet was fragmented into four pieces, and these four fragments pass over your interface, the packet counts will indicate four separate packets.

The figure for the IP checksum error is a packet count only, because the corrupted IP header cannot be relied upon to give a correct IP packet length value.


The figures are logged at regular intervals if logging is enabled.

Pressing X or Q takes you back to the main menu (if this facility was started with the command-line option, X or Q drops you back to the shell).

Statistical Breakdowns

Statistical breakdowns contain two facilities that break down traffic counts by either packet size or TCP/UDP port.

Statistical Breakdown: Packet Sizes

The packet size breakdown facility used to be incorporated into the detailed interface statistics. It has since been moved to its own facility. It is entered by selecting Statistical Breakdowns/By packet size.

The packet size breakdown takes the interface's Maximum Transmission Unit (MTU) size and divides it into 20 brackets, each bracket containing a range of sizes. As a packet is captured, its size is determined and the appropriate bracket is incremented.

This facility provides an idea as to the packet sizes passing over your network, and can aid in network (re)design decisions.

Packet Size Breakdown

If logging is enabled, copies of the statistics are written at regular intervals to packet_size.log in the log directory.

The packet size breakdown can also be invoked straight from the command line by specifying the -z iface parameter. The interface parameter is required. For example, this command runs the facility on interface eth0.

	iptraf -z eth0

To exit, press X or Ctrl+X.

Statistical Breakdown: TCP and UDP Traffic Statistics

IPTraf also includes a facility that generates statistics on TCP and UDP traffic. This facility displays counts of all TCP and UDP packets with source or destination ports numbered less than 1024. Ports 1 to 1023 are reserved for the TCP/IP application protocols (well-known ports).

TCP/UDP Statistics

The statistics window indicates the protocol (TCP or UDP), the port number, the total packets and bytes counted for this particular protocol/port combination, the packets and bytes destined for that protocol and port, and the packets and bytes coming from that protocol and port.

Byte counts include the IP header and payload only. The data link header is not included.

The protocol/port indicators are color-coded for easier identification. TCP indicators are in yellow, UDP in bright green (TCP is normal, UDP is bold white in non-color mode).

Some network applications or protocols may use port numbers higher than 1023. Examples of these include application proxy servers (HTTP proxy servers typically use values like 8000, 8080, 8888, and the like), and IRC (IRC servers commonly accept connections on ports 6660 to 6669). These ports are by default not included in the counts. If you do want to include a higher-numbered port in the statistics, you can add them yourself from the Configure/Additional port... menu item. See the section below.

The statistics are also written to the log file tcp_udp_services.log if logging is enabled.

If you wish to start this facility from the command line, you can use the -s option followed by an interface to monitor. For example,

        iptraf -s eth0
brings up this module for traffic on eth0. The interface must be specified, or IPTraf will drop back to the shell.

The Up and Down cursor keys scroll the window. Pressing X or Ctrl+X exits and returns to the main menu (or the shell if it was started from the command line).

LAN Station Statistics

The LAN Station Monitor (Ethernet Station Monitor on versions prior to 1.3.0) discovers MAC addresses and displays statistics on the number of incoming, and outgoing packets. It also includes figures for incoming and outgoing kilobits per second for each discovered station.

The entry above each line of statistics is the station's LAN type (Ethernet, PLIP, or FDDI) and the hardware MAC address. Each statistics line consists of the following information:

The byte counts include the data link header. The activity indicators can be set to display kbits/s or kbytes/s with the Activity mode configuration option.

This facility works only for Ethernet, PLIP, and FDDI frames. Loopback. ISDN, and SLIP/PPP networks are not monitored here.

LAN Station Statistics

Copies of the statistics are written to the log file lan_statistics.log at regular intervals if logging is enabled.

The window can be scrolled with the Up and Down cursor keys. Press X or Q to return to the main menu (or the shell if this facility was started with the -e command-line option).

Display Filters

The Display Filters are used to control the information displayed by the IP Traffic Monitor. In many cases, the Traffic Monitor fills up very rapidly with information, most of which you may not need. You may want to use such a display just to get a general idea of the network traffic, but if you're interested only in particular traffic, you must restrict the information displayed. The filters also apply to logging activity.

TCP Filters

The TCP display filters option allows you to define a set of parameters that determine which connections the Traffic Monitor displays about. Selecting this option pops up another menu with the tasks used to define and apply custom TCP display filters.

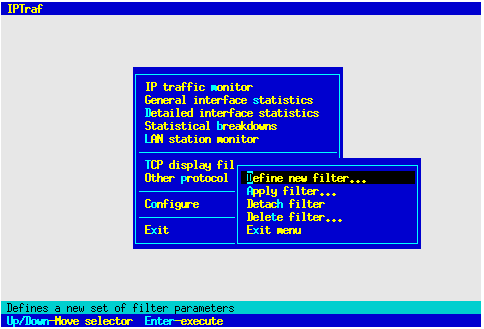

TCP Filter Menu

Defining a New Filter
A freshly installed program will have no filters defined, so before anything else, you will have to define a filter. You can do this by selecting the Define new filter... option.

Selecting this option displays a box asking you to enter a short description of the filter you are going to define. Just enter any text that clearly identifies the nature of the filter.

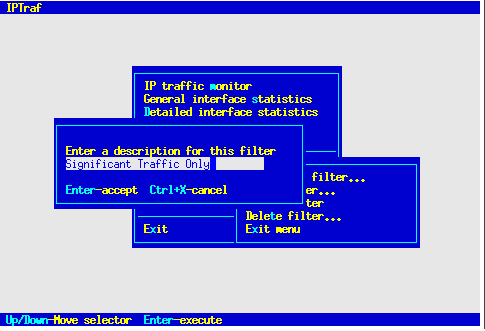

TCP Filter Description Dialog

Press Enter when you're done with that box. As an alternative, you can also press Ctrl+X to cancel the operation. Following that will be another dialog box asking you for the source and target IP addresses, wildcard masks, and service ports.

You can enter addresses of individual hosts, networks, or a catch-all address. The nature of the address will be determined by the wildcard mask.

You'll notice two sets of fields. You fill these out with the information about your source and targets. Strictly speaking, because packets alone don't provide information about which side initiated the connection (except for SYN packets), you may think of these as "endpoint" fields rather than as strict source/target fields. That means, you can enter information about the "from" side in the first set of fields, and the "to" side in the second set, or vice versa. It doesn't matter, since TCP is full duplex. (Also important, since the Traffic Monitor displays information about both sides of the connection).

Fill out the IP address of the hosts or networks in the first field marked Host name/IP Address. Enter it in standard dotted- decimal notation. When done, press Tab to move to the Wildcard mask field. The wildcard mask is similar but not exactly identical to the standard IP subnet masks. The wildcard mask is used to determine which bits to ignore when processing the filter. In most cases, it will work very closely like a subnet mask. Place ones (1) under the bits you want the filter to recognize, and keep zeros (0) under the bits you want the filter to ignore. For example:

To recognize the host 207.0.115.44
        Enter IP address:	207.0.115.44
        Wildcard mask:          255.255.255.255

To recognize all hosts belonging to network 202.47.132.x
        Enter IP address:       202.47.132.0
        Wildcard mask:          255.255.255.0

To recognize all hosts with any address:
        Enter IP address:       0.0.0.0
        Wildcard mask           0.0.0.0
The IP address/wildcard mask mechanism of the display filter doesn't recognize IP address class. It uses a simple bit- pattern matching algorithm.

The wildcard mask also does not have to end on a byte boundary; you may mask right into a byte itself. For example, 255.255.255.224 masks 27 bits (224 is 11100000 in binary).

Leaving the wildcard mask fields blank or storing invalid data in them causes the filter to recognize the entries as 255.255.255.255.

IPTraf also accepts host names in place of the IP addresses. IPTraf will resolve the host name when the filter is loaded. When the filter is interpreted, the wildcard mask will also be applied. This can be useful in cases where a single host name may resolve to several IP addresses.


Tip See the Linux Network Administrator's Guide if you need more information on IP addresses and subnet masking.

The Port field should contain a port number of the service you may be interested in. Leave it at 0 to let the filter ignore it. You will most likely be interested in target ports rather than source ports (which are usually unpredictable anyway, perhaps with the exception of FTP data).

Fill out the second set of fields with the parameters of the opposite end of the connection. As previously mentioned, you may place either set of parameters in either set. By default, the second set of parameters are preset to 0.0.0.0, 0.0.0.0, 0. Just Backspace or Delete over them and replace them if needed.

The last field is marked Include/Exclude. This field allows you to decide whether to include or exclude this entry from the display. Setting this field to I causes the filter to display matching entries, while setting it to E causes the filter to supress the display of matching entries. This field is set to I by default.

Press Enter to accept all parameters when done. The parameters will be accepted and you'll be presented with another blank form. You can enter as many sets of paramters as you wish. Press Ctrl+X at a blank form when done.

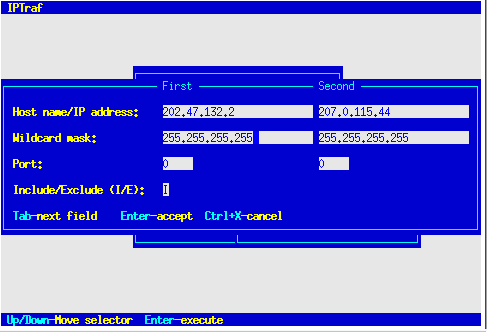

TCP Filter Parameter Dialog

Examples
To see all traffic to/from host 202.47.132.1 from/to 207.0.115.44, regardless of TCP port

Host name/IP Address    202.47.132.2            207.0.115.44
Wildcard mask		255.255.255.255		255.255.255.255
Port                    0                       0
Include/Exclude         I
To see all traffic from/to 207.0.115.44 to/from network 202.47.32.0

Host name/IP Address    207.0.115.44            202.47.132.0
Wildcard mask		255.255.255.255		255.255.255.0
Port                    0                       0
Include/Exclude         I
To see all Web traffic, regardless of source or destination

Host name/IP Address    0.0.0.0                 0.0.0.0
Wildcard mask		0.0.0.0			0.0.0.0
Port                    80			0
Include/Exclude         I
To see all mail (SMTP) traffic to a single host (202.47.132.2) from anywhere

Host name/IP Address    202.47.132.2            0.0.0.0
Wildcard mask		255.255.255.255		0.0.0.0
Port                    25                      0
Include/Exclude         I
To see traffic to/from host sunsite.unc.edu from/to cebu.mozcom.com

Host name/IP Address	sunsite.unc.edu		cebu.mozcom.com
Wildcard mask		255.255.255.255		255.255.255.255
Port			0			0
Include/Exclude         I
To omit display of traffic to/from 140.66.5.x from/to anywhere

Host name/IP Address    140.66.5.x              0.0.0.0
Wildcard mask           255.255.255.0           0.0.0.0
Port                    0                       0
Include/Exclude         E
In all cases, you could have interchanged the first and second sets of IP addresses, wildcard masks, and port values; they wouldn't have made any difference. That's why they're better referred to as "first" and "second" rather than "source" and "target".

You can enter as many parameters as you wish. All of them will be interpreted when the filter is processed.

Excepting Certain Sites from the Display
Filters follow an "implicit no-display" policy, that is, only explicitly defined sites will be displayed, everything else is not. This is similar to the access-list policy "whatever is not explicitly permitted is denied". If you want to show all traffic to/from everywhere, except certain places, you can specify the sites you wish to exclude, mark them with E in the Include/Exclude field, and define a general catch-all entry with source address 0.0.0.0, mask 0.0.0.0, port 0, and destination 0.0.0.0, mask 0.0.0.0, port 0, tagged with an I in the Include/Exclude field as the last entry.

For example:

To see all traffic except all SMTP, Web, and traffic from/to 207.0.115.44:

Host name/IP address            0.0.0.0                 0.0.0.0
Wildcard mask                   0.0.0.0                 0.0.0.0
Port                            25                      0
Include/Exclude                 E

Host name/IP address            0.0.0.0                 0.0.0.0
Wildcard mask                   0.0.0.0                 0.0.0.0
Port                            80                      0
Include/Exclude                 E

Host name/IP address            207.0.115.44            0.0.0.0
Wildcard mask                   255.255.255.255         0.0.0.0
Port                            0                       0
Include/Exclude                 E

Host name/IP address            0.0.0.0                 0.0.0.0
Wildcard mask                   0.0.0.0                 0.0.0.0
Port                            0                       0
Include/Exclude                 I


Tip To omit all TCP from the display, define a filter with a single entry, with a source of 0.0.0.0 mask 0.0.0.0 port 0, and a destination of 0.0.0.0 mask 0.0.0.0 port 0, with the Include/Exclude field marked E (exclude). Then apply this filter.

Applying a Filter
The above steps only add the filter to a defined list. To actually apply the filter, you must select Apply filter. from the menu. You will be presented with a list of filters you already defined. Select the one you want to apply, and press Enter.

The applied filter stays in effect over exits and restarts of the IPTraf program until it is detached.

Editing a Defined Filter
Select Edit filter... to modify an existing filter. Once you select this option, you will be presented with the list of defined filters. Select the filter you want to edit by moving the pointer and press Enter.

Edit the description if you wish. Pressing Ctrl+X at this point will abort the operation, and the filter will remain unmodified. Press Enter to accept any changes to the filter description.

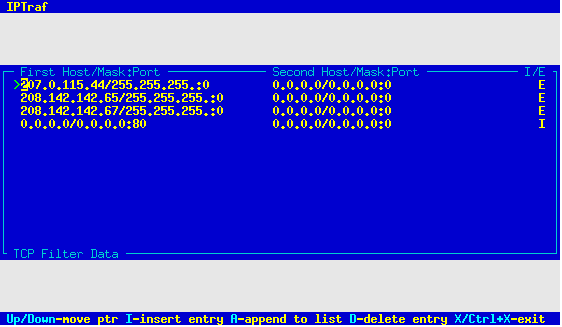

After pressing Enter, you will see the filter's rules. To edit an existing filter rule, move the pointer to the desired entry and press Enter. A prefilled dialog box will appear. Edit its contents as desired. Press Enter to accept the changes or Ctrl+X to discard.

You can add a new filter rule by pressing I to insert at the current pointer position. When you press I, you will be presented with a dialog box asking you to enter the new rule data. Pressing A results in a similar operation, except the rule will be appended as the last entry in the rule list.

Pressing D deletes the currently pointed entry.

Press X or Ctrl+X to end the edit and save the changes.


Note Be aware that the filter process the rules in order. In other words, if a packet matches more than one rule, only the first matching rule is followed.

Deleting a Defined Filter
Select Delete filter... from the menu to remove a filter from the list. Just move the pointer to the filter you want to delete, and press Enter.

Detaching a Filter
The Detach filter option deactivates the filter currently in use. Selecting this option causes all TCP information to be displayed by the traffic monitor.

When you're done with the menu, just select the Exit menu option.

Other Protocol Filters

You can select the other IP-type protocols you want to display or omit with the Other protocol filters... option. With the exception of UDP, the filters for other protocols are simply toggled. To toggle a protocol's display, just select the protocol and press Enter. Visible protocols are listed in the box next to the menu.

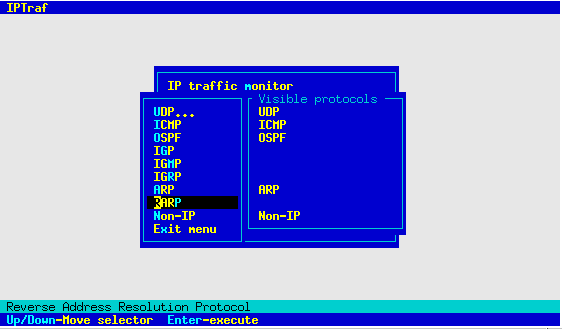

Non-TCP Filters

Because UDP packets are also significantly high in volume, you can also define a UDP filter the same way you do a TCP filter. To work with UDP filters, select the UDP... option. You can opt to display all UDP packets, no UDP packets, and define a custom UDP filter. Other than the first two options, the others are almost identical to the custom TCP filter options. Custom UDP filters can be defined, edited, and deleted as TCP filters. See the section on TCP Filters above.

If you applied a custom UDP filter, or set IPTraf to display all UDP packets, UDP will be included in the list of visible protocols.

The Non-IP filter option toggles the display and logging of all non-IP packets, excepting ARP and RARP, which are toggled separately.

The filters for non-TCP protocols are saved and automatically reapplied whenever IPTraf is restarted after an exit.

Configuring IPTraf

IPTraf can be easily configured with the Configure item in the main menu. The configuration is stored in the /var/local/iptraf/iptraf.cfg file. If the file is not found, IPTraf uses the default settings. Any changes to the configuration immediately get stored in the configuration file.

Configuration Menu

Reverse Lookup
Activating reverse lookup causes IPTraf to find out the name of the hosts with the addresses in the IP packets. As pointed out earlier, if you're on the Internet, your keyboard control can become very clumsy with this option enabled, and you can lose packet counts. You may want to keep this off if you're monitoring a machine on the Internet, or if you have no accessible name server or host table. A local DNS server on an isolated LAN though won't give much trouble.

This option is off by default.

TCP/UDP service Names
This option, when on, causes IPTraf to display the TCP/UDP service names (smtp, www, pop3, etc.) instead of their numeric ports (25, 80, 110, etc). The number-to-name mappings will depend on the systems services database file (usually /etc/services). Should there be no corresponding service name for the port number, the numeric form will still be displayed.

This setting is off by default.


Note Reverse lookup and service name lookup take some time and may impact performance and increase the chances of dropped packets. Performance and results are best (albeit more cryptic) with both these settings off.

Force promiscuous
If this option is enabled, your LAN interfaces will capture all packets on your LAN. Using this option enables you to see all TCP connections and packets passing your LAN segment, even if they're not from or for your machine. When this option is active in the statistics windows, the Activity indicators will show a good estimate of the load on your LAN segment.

When this option is disabled, you'll only receive information about packets coming from and entering your machine.

The setting of this option affects all LAN (both Ethernet and FDDI) interfaces on your machine, if you have more than one.

The interface's promiscuous flag is set only when a facility is started, and turned of when it exits. However, if promiscuous mode was already set when a facility was started, it remains set on exit.

If multiple instances of IPTraf are started, the promiscuous setting is restored only upon exit of the last facility.


Note Do not use other programs that change the interface's promiscuous flag at the same time you're using IPTraf. The programs can interfere with each other's expected operations.

Color
Turn this on with color monitors. Turn it off with black-and- white monitors or non-color terminals (like xterms). Changes to this setting will take effect the next time the program is started.

Color is on by default on consoles, off on non-color terminal types like xterms and VT100s.

Logging
When this option is active, IPTraf will log information to a disk file, which can be examined later. Each facility has its own log file in (by default) the /var/log/iptraf directory as follows:

	IP Traffic Monitor              - ip_traffic.log
	General Interface Stats         - iface_stats_general.log
	Detailed Interface Stats        - iface_stats_detailed.log
	TCP/UDP Service Monitor         - tcp_udp_services.log
	Packet Size Breakdown		- packet_size.log
	LAN Station Monitor             - lan_statistics.log

The traffic monitor will write the following pieces of information to its log file:

Each log entry includes the date and time the entry was written. Logging is also affected by the defined filters.

Log files can grow very fast, so be prepared with plenty of free space and delete unneeded logs. Log write errors are not indicated.

Copies of the interface statistics, TCP/UDP statistics, packet size statistics, and LAN host statistics are also written to the log files at regular intervals. See Log Interval... below.

IPTraf closes and reopens the active log file when it receives a USR1 signal. This is useful in cases where a facility is run for long periods of time but the log files have to be cleared or moved.

To clear or move an active log file, rename it first. IPTraf will continue to write to the file despite the new name. Then use the UNIX kill command to send the running IPTraf process a USR1 signal. IPTraf will then close the log file and open another with the original name. You can then safely remove or delete the renamed file.

Do not delete an open log file. Doing so will only result in a file just as large but filled with null characters (ASCII code 0).

Logging comes disabled by default. The USR1 signal is caught only if logging is enabled, it is ignored otherwise.

Activity mode
Toggles activity indicators in the interface and LAN statistics facilities between kilobits per second (kbits/s) or kilobytes per second (kbytes/s).

The default setting is kilobits per second.

TCP Timeout
This figure determines the amount of time (in minutes) a connection entry may remain idle before it becomes eligible for replacement by a new connection. The default is 15 minutes. You may want to reduce this on an isolated (not connected to the Internet) LAN or a LAN connected to the Internet with high-speed links. Just enter the new value and press Enter. You can press Ctrl+X to leave the current value unchanged.

Log Interval
This figure determines the number of minutes between logging of interface statistics, TCP/UDP figures, and LAN host statistics. The default is 60 minutes. This figure is meaningless if logging is disabled.

Screen Update Interval
This value determines the rate in seconds at which the screen is updated. The default is 0, which means the screen is updated as fast as possible, giving close-to-realtime reflection of network activity. However, this high-speed update can cause incredible amounts of traffic if IPTraf is run on a remote termnial (e.g. a Telnet or Secure Shell session). You can set this to a higher value, such as 1 or 2 seconds to slow down the updates.

This figure does not affect the rate of data capture. Only the screen refresh is affected. The figures are still updated as fast as possible, although the figure display will no longer be as close to realtime.

The default setting is 0, which shouldn't be a problem on the console. Set it to a slightly higher value on remote terminals or slow links. The setting affects all monitoring facilities.


Note Screen updating is one of the slowest operations in a program. Older versions of IPTraf had a problem once network activity became very high. Because each packet caused a screen update, IPTraf began spending more time with the screen updates, causing a loss of packets once network activity reached a certain point.

However, since many users like rapid counts on their screen, a compromise was incorporated. Even when the screen update interval is set to 0, there is still a 50ms delay between screen updates (except the LAN station monitor, which has a 100 ms delay). This is still visually fast, but provides more time to the packet capture routine. Higher delays may result in better accuracy of counts and activity.

In any case, this setting only affects screen updates. Capture still proceeds as fast as possible.


TCP closed/idle persistence
This paremeter determines the interval (in minutes) at which the IP Traffic Monitor clears from the TCP display window all closed, idle, and timed out entries. Enter 0 to keep such entries on the screen indefinitely, disappearing only when replaced by new connections.


Note The TCP timeout... option only tells IPTraf how long it should take before a connection should be considered idle and open to replacement by new connections. This does not determine how long it remains onscreen. The TCP closed/idle persistence... parameter flushes entries that have been idle for the number of minutes defined by the TCP timeout... option.

Additional port
Select this item to enter a port number to be included in the TCP/UDP counts in the TCP/UDP service statistics main menu item described above. By default, port numbers above 1023 are not monitored. If you do have a higher-numbered port to monitor, enter it here.

You will see two fields. If you have only one port to enter, just fill up the first field. To specify a range, fill both fields, the first port in the first field, the last port in the second field.

You can select this option multiple times to add more values or ranges.

Delete port/range
Select this item to remove a higher-numbered port number or port range you entered earlier with the Additional port... option. A window will come up containing the entered ports and ranges. Select the entry you want delete and press Enter.

LAN Station Identifiers

The LAN station statistics facility monitors stations based on their respective MAC addresses. The hexadecimal notation of these addresses make them even more difficult to remember than the dotted-decimal IP addresses, so these facilities was added to help you better find which station is which.

Selecting the Ethernet/PLIP host descriptions or FDDI host descriptions options brings up a submenu asking you to add, edit, or delete descriptions.

To add a new description, select the Add description... option. A dialog box will appear, asking you for the MAC address and an appropriate description. Type in the address in hexadecimal notation with no punctuation of any kind. The dialog box is case-insensitive for the address; the alphabetical digits A to F will be stored in lowercase.

Use the Tab key to move between fields and Enter to accept. Press Ctrl+X to discard this dialog and return to the main menu.

The description may be anything: the IP address, a fully-qualified domain name, or a description of your liking as long as the field can hold.

Enter as many descriptions as you need. Press Ctrl+X at a blank dialog after you have entered the last entry

These descriptions will be displayed alongside the MAC addresses in the LAN station monitor, together with the type of frame (Ethernet, PLIP, or FDDI).

An existing address or description may be edited by selecting the Edit description... option from the submenu. A panel will appear with a list of existing address descriptions. Select the one you wish to edit and press Enter. A dialog box identical to that when you add a description will appear with prefilled fields. Just backspace over and edit the fields. Press Enter to accept or Ctrl+X to cancel.

Selecting the Delete description... submenu item brings up the selection panel. Select the description you want to delete and press Enter. You can also press Ctrl+X to cancel the operation.


Note The description file for Ethernet and PLIP is ethernet.desc, while the FDDI descriptions are stored in fddi.desc in the IPTraf working directory. These files are in colon-delimited text format. Database engines or custom scripts can be told to append data lines to those files. Each line follows this simple format:

For example

Do not put colons, periods, or any invalid characters in the MAC address.


Background Operation

IPTraf's facilities can be placed in the background solely for logging. When running in the background, it doesn't display any output on the screen, and doesn't receive input from the keyboard, and drops you back to the shell.

Before starting a statistical facility in the background, configure IPTraf in the usual way (set filters, add TCP/UDP ports, etc).

Once that's done, exit all instances of IPTraf on the system, then invoke IPTraf from the command line with the parameter to start the facility you want, the timeout (-t) parameter if you wish, and the -B parameter to actually daemonize the program. For example, to run the IP Traffic Monitor in the background for all interfaces, issue the command

To run the Detailed Interface Statistics on interface eth0 for 5 minutes in the background:

If the timeout parameter is not specified, the facility will run until the process recieves a USR2 signal. To stop a facility in the background, do a

at the command line, and find the process id (pid) of the iptraf process you're looking for. Then send that process a USR2 signal with the kill command:

Since IPTraf cannot send error messages to the terminal, all messages are written to the file daemon.log in the IPTraf logging directory.

The -B automatically enables logging regardless of its configured setting. The parameter is ignored if not used with one of the parameters to start a facility from the command line.

Messages

Unable to create config file
IPTraf cannot create the configuration file. The most likely cause of this is that you didn't properly install the program, and the necessary directory /var/local/iptraf does not exist. Can also be generated if you have a disk problem or if you have too many files open.

Unable to read config file
The configuration record cannot be read. You most likely have a disk problem.

Unable to write config file
The configuration file cannot be written. You either have a disk problem, or (more likely), your disk is full.

Error loading filter list file
IPTraf cannot access the list of defined TCP or UDP filters. Can also be an indicator of a bad disk.

Error writing filter list file
The filter list file cannot be written to. You may have trouble accessing your filters.

Unable to read filter file
IPTraf cannot read the filter data off the file. Could be caused by a bad disk.

Error opening filter file
IPTraf cannot open the filter file. Could be caused by a shortage of file descriptors or a bad disk.

Unable to write TCP/UDP filter record
IPTraf cannot add the newly defined filter to the filter list.

Cannot create TCP/UDP filter record file
IPTraf cannot create the filter record file. The defined filter is lost.

Unable to create TCP/UDP filter file
IPTraf cannot create the filter data file.

Unable to save TCP/UDP filter name
IPTraf cannot save the name of the current TCP filter. IPTraf will start with no filters active the next time it is invoked.

Unable to save filter changes IPTraf cannot save the changes you made to the filter. You probably have a disk error.

Unable to retrieve saved TCP/UDP filter
The saved filter cannot be retrieved. IPTraf will start with no TCP filters active.

Unable to write non-TCP filters
IPTraf was not able to write the filters for the other protocols. Probably due to a bad disk or full filesystem.

Unable to save interface flags
IPTraf was unable to save the flags of the network interfaces. This is probably due to a bad installation or full filesystem.

Unable to retrieve saved interface flags
IPTraf was unable to retrieve the save interface flags. Probably again due to a bad installation or full filesystem.

protocol data file in use; try again later
Another IPTraf process is modifying the TCP or UDP filter data, and has locked the files. Try again once the other IPTraf process has terminated or completed its modifications and unlocked the files.

Unable to resolve hostname
The indicated host name in the filter cannot be resolved into an IP address. Check the local hosts database /etc/hosts or your machine's DNS configuration or DNS server.

The filter parameters will not be used.

Unable to open host description file
IPTraf cannot open the file containing the descriptions for Ethernet or FDDI addresses. Could be due to a bad disk or a hit on the file descriptor limit.

Unable to write host description
IPTraf was unable to write the description record for this Ethernet or FDDI address. Could be due to a bad disk or corrupted filesystem.

No descriptions
You tried to edit or delete a description with no previous descriptions defined.

Cannot open log file
There is a problem opening the log file. There is most likely a problem with the disk, or there are too many open files.

Unable to obtain interface list
IPTraf was unable to retrieve the list of network interfaces from the /proc filesystem. This may be due to a badly configured kernel. IPTraf needs /proc filesystem support.

Unable to obtain interface parameters for interface
The system call to retrieve the interface's flags failed. Check your interface or kernel driver.

Promisc change failed for interface
The system call to change the promiscuous flag failed. Check your interface or its kernel driver.

Unable to open raw socket for flag change
IPTraf was unable to open the necessary socket for the promiscuous change operation. May be due to a shortage of file descriptors.

Unable to open socket for MTU determination
Returned by the facility for detailed interface statistics if the raw socket's opening sequence failed. The facility will abort.

Unable to open raw socket
IPTraf was unable to open the raw socket for packet capture. May be due to a shortage of file descriptors.


Reminder IPTraf 2.x.x requires Linux kernel 2.2.x, with the Packet Socket option compiled in or installed as a module. IPTraf 2.x will return this error on a pre-2.2 kernel or on a 2.2 kernel without Packet Socket.

Unable to obtain interface MTU
The detailed statistics facility was unable to obtain the maximum transmission unit (MTU) for the selected interface. The facility will abort.

Specified interface not supported
The interface specified with the -i, -d, -s, -l or -z command-line parameters is not supported by IPTraf.

Specified interface not active
The interface specified with the -i, -d, -s, -l or -z command-line parameters is supported, but not currently activated.

Fatal: memory allocation error
May occur if you have too little memory to allocate for windows, the menu system, or dialog boxes. IPTraf tries to prevent further allocations if memory runs out during a monitor. However, this could also mean a bug if you're reasonably sure you're not out of memory. An instructional message on bug reporting follows this message.


Technical note: This is actually a response to the segmentation fault error (SIGSEGV).

This program can be run only by the system administrator
IPTraf normally does not allow anybody but uid 0 (root) to run it. This measure is included for safety reasons. See the section on recompiling the program below if you want to override this. This feature is built in, and not part of the configuration

Your TERM variable is not set
The TERM (terminal type) environment variable must be set to a valid terminal type so that the screen management routines can function properly. Set it to the appropriate terminal type. Linux consoles typically use a value called "linux".

Received TERM signal
Not related to the previous message. The TERM (terminate) signal is normally used to gracefully shut down a program. This message simply indicates that the TERM signal was caught and IPTraf is attempting to shut down as gracefully as possible.

Invalid option or missing parameter, use iptraf -h for help
The -i, -d, -s, -z or -l options were specified but no interface was specified on the command line. These parameters require a valid interface name (or all for -i or -l).

This message also appears if an unknown option is passed to the iptraf command.

Warning: unable to tag this process
IPTraf normally tags itself when it runs to prevent multiple instances of the statistical facilities from running. This message means the program was unable to create the necessary tag file. This may be due to a bad or improper installation. Try running the "make install" procedure.

Warning: unable to tag facility
IPTraf was unable to create the tag file for the facility you started. The facility will still run, but other instances of IPTraf that may be running simultaneously will allow the same facility to run. This may cause both instances of the facility to malfunction. This could be due to a bad disk or bad installation.

facility already active in another process
The facility you tried to start is currently running in another IPTraf process on the machine. This restriction is placed to prevent conflicts involving internal sockets or the log file.

Duplicate port/range entry
You entered a port number or range that was already added to the list of additional ports to be monitored by the TCP/UDP service monitor

No custom ports
There are no ports or port ranges earlier added. There's nothing to delete.

Can't start rvnamed; lookups will block
IPTraf cannot start the rvnamed daemon; probably due to a bad installation. IPTraf will fall back to blocking lookups.

Can't spawn new process; lookups will block
IPTraf cannot start a new process. This may be due to memory shortage. IPTraf will fall back to blocking lookups.

Fork error, IPTraf cannot run in background
IPTraf cannot start a new process, and can go into the background. This may be due to memory shortage. IPTraf aborts.

No memory for new filter entry
IPTraf was unable to allocate memory for a new filter entry. Most likely due to memory shortage.

Memory Low
This indicator appears if memory runs low due to a lot of entries in a facility. Should critical functions fail (window creation, internal allocation), the program could terminate with a segmentation violation.

IPC Error
This indicator appears if an error occurs receiving data from the rvnamed program (IPC stands for Interprocess Communication). This indication should not occur under normal circumstances. Report instances of this condition and the circumstances under which it happens. You may also include data from the rvnamed.log file.

Error opening terminal: terminal
The screen management routines cannot find the terminfo entry for your terminal. IPTraf expects the terminfo database located in /usr/share/terminfo. This error could occur when your terminfo database is located somewhere else.

See the section above on controlling the terminfo search path.

rvnamed Messages

Being a daemon, rvnamed does not send messages to the screen. It writes its messages to the file rvnamed.log in the IPTraf working directory.

Unable to open child communication socket
rvnamed was unable to open the communication endpoint for data reception from the children it creates. This is highly unusual, and should it occur, report the circumstances.

Unable to open client communication socket
rvnamed was unable to open the communication endpoint for data exchange with the IPTraf program. This is highly unusual, and should it occur, report the circumstances.

Error binding client communication socket
Error binding child communication socket

rvnamed was unable to assign a name to the indicated communication socket. This may be due to a bad, full, or corrupted filesystem.

Fatal error: no memory for descriptor monitoring
rvnamed ran out of memory. IPTraf will resort to blocking, and may freeze.

Error on fork, returning IP address
rvnamed had a problem spawning a copy of itself to resolve the IP address. rvnamed will simply return the IP address in its literal, dotted-decimal notation. IPTraf will still function normally. This may be due to lack of memory or a process limit hit.

Technical Appendices

Recompiling the Program

With both the downloaded and floppy distributions, you can recompile the program immediately before you do the make install. Perform the following steps to recompile:

  1. Change to the src directory and clear out the supplied binaries by entering

            make clean

  2. Recompile by entering

            make

    at the prompt. You may want to recompile force the program to use your libraries and/or kernel sources, or to simply generate smaller executable files.

The distribution executable file is dynamically-linked ELF. It uses the shared C library, but the ncurses and panels libraries are linked in. With most systems, this program should work immediately after installation.

If you have the appropriate libraries and facilities, you can recompile the program to use the shared versions of the ncurses and panels libraries.

Recompiling requires:

Makefile Options

The Makefile has several options you can change. You probably don't need to change most of them, probably with the exception of LDOPTS

The dirs.h header file also contains the default locations for the working directory and the names and locations of the configuration and log files. You do not need to change these, but you may do so if you'd rather place these files somewhere else.

Read the comments in the Makefile and dirs.h files for information on the various directives.

When compilation is complete, enter

        make install
to install the resulting executable modules in the proper directory.

Technical Notes

(also in the README file)

Kernel

IPTraf 2 requires the 2.2.x series of the Linux kernel. If you still have Linux 2.0, continue using IPTraf 1.4. You must make sure your 2.2 kernel has the Packet Socket functionality compiled in or installed as a module, or IPTraf will fail.

The new kernel's raw packet capture facility has been extended since the last stable kernel release, and IPTraf now takes advantage of the new functionality, enabling it to count packets on a directional (incoming/outgoing) basis.

Security

The raw socket interface requires the program to run with root permission. This program is intended for system and network administrators. However, should you want to allow non-root users to use the program you can edit the Makefile and enable the -DALLOWUSERS option, then install the program setuid root. This is not recommended though. While effort has been exerted to avoid things like buffer overruns, this program is not declared to be secure for non- root users to use.

The rvnamed daemon communicates with IPTraf with the UNIX domain socket mechanism. Being a background daemon, it may present a possible security issue if it turns out to be broken. Please report any discovered problems immediately.

Terminal

This program was designed to run on the Linux console. It should work on 80x25 xterms and rxvt windows. Run this program from the console (text or xterm) or a high-speed terminal for best results. Resize xterms to the appropriate size before you run the program.

IPTraf will use the maximum number of available lines and columns in the terminal.

User Interface

Reverse DNS lookups will block if the rvnamed daemon is not running when the traffic monitor is active. This will cause severe packet loss and keyboard control close to impossible. Normally rvnamed should start with no problems whenever the traffic monitor is started with reverse lookups enabled.

There is also a little concern regarding the Backspace key. Apparently the backspace key mapping (KEY_BACKSPACE) is considered unreliable, and is marked as such in ncurses versions as late as 1.9.9e, although tests on this version already worked. Tests for 1.9.4 failed; pressing the Backspace key yielded ^?. The Delete key works with no problem though. If you want the program to not recognize the Backspace key, you can enable the -DDISABLEBS directive in the Makefile.

Earlier versions of ncurses also did not properly define the behavior of overlapping windows. This has been fixed in 1.9.9e.

Network Interfaces

IPTraf currently includes support for Ethernet, FDDI, loopback, asynchronous SLIP/PPP, PLIP, and ISDN (synchronous PPP, Cisco-HDLC, and raw IP encapsulations).

With Ethernet and FDDI, IPTraf can receive packets in promiscuous mode (i.e. all packets on the LAN, regardless of their destination). Promiscuous mode is pointless on SLIP/PPP interfaces, since these things are point-to-point links.

IPTraf imposes no additional load on the network, except for DNS traffic if reverse name lookup is enabled. (Some setups use RPC calls to obtain service name information. This could also add UDP traffic to the network.)


License and Copyright for IPTraf

IPTraf 2.2 Copyright © Gerard Paul Java, 1997-2000

The software and accompanying documentation are distributed under the terms of the GNU General Public License, Version 2 or any later version, as published by the Free Software Foundation, Inc. Permission is granted to distribute and/or modify the software and the documentation under the terms of the license.

The software and accompanying documentation are distributed WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR ANY PARTICULAR PURPOSE. For more details, see the GNU General Public License, in the COPYING file included in the distribution.

IPTraf uses header files that are part of the GNU C library and the Linux kernel distribution.

Additional structures were extracted from software copyrighted by the Regents of the University of California.

Linux is a registered trademark of Linus Torvalds

Pentium is a registered trademark of Intel Corporation.


IPTraf User's Manual, HTML Version 2.2.1
Copyright © Gerard Paul Java 1997-2000
